eX700 Series HMIs
High-Performance touch panels
The eX700 series is the all-in-one industrial automation solution ready for scalable applications. Key features include: multitouch display and robust glass front, 3 Ethernet ports and expandability with plug-in modules, full range of certifications for extreme working environments, maritime and industrial, ready for installation of CODESYS PLC runtime software with a full selection of network stacks for I/O.
The eX700 series is available with a 5- to 21-inch display.
Note: With its powerful 64-bit quad-core CPU, the eX700M series is an enhancement of the eX700 series.

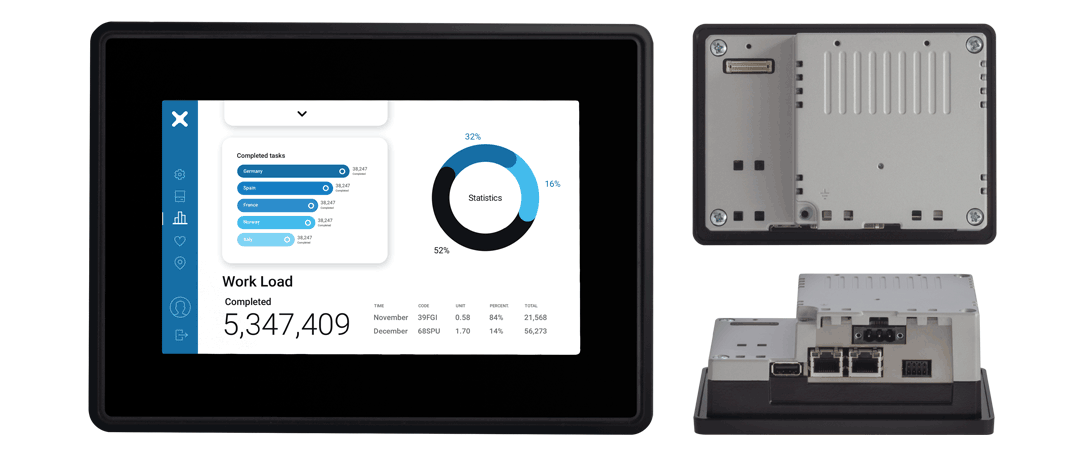

EXOR eX705
Key Features
- 5" TFT color display
- 800 x 480 pixel resolution, 64K colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit single-core CPU, 1 GHz
- 4 GB Flash, 512 MB RAM, 64 KB FRAM
- 2x Ethernet ports (10/100 Mbps)
- 1x USB port
- 1x RS-232/422/485 serial port
- 1x slot for expansion module
- JMobile Studio programming, or web browser

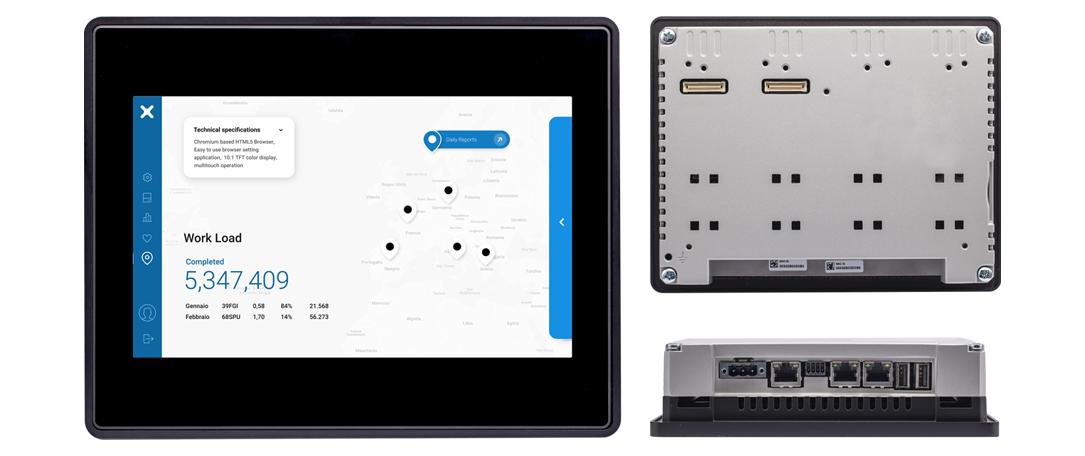

EXOR eX707
Key Features
- 7" TFT color display
- 800 x 480 pixel resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

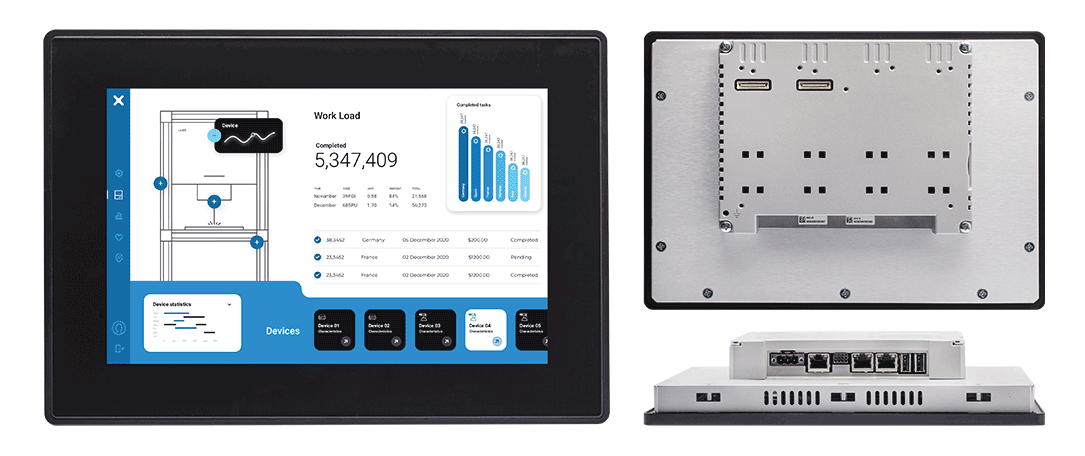

EXOR eX710
Key Features
- 10.1" TFT color display
- 1280 x 800 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

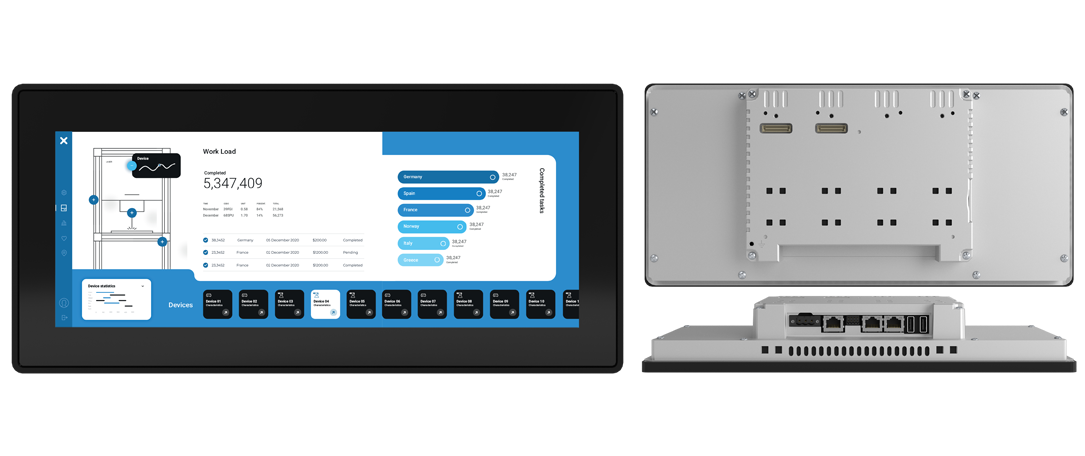

EXOR eX712
Key Features
- 12.3" TFT (ultra-wide) color display
- 1920 x 720 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit quad-core CPU, 800 MHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

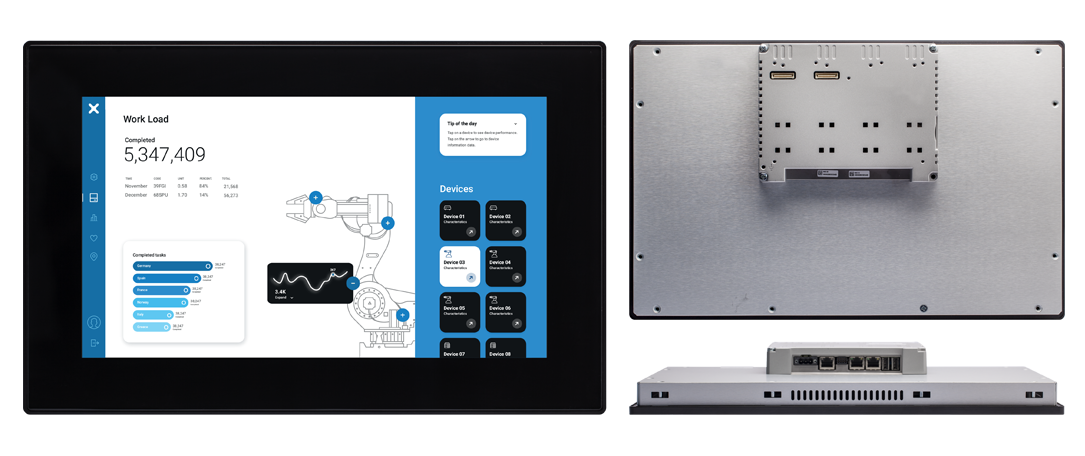

EXOR eX715
Key Features
- 15.6" TFT color display
- 1366 x 768 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit quad-core CPU, 800 MHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

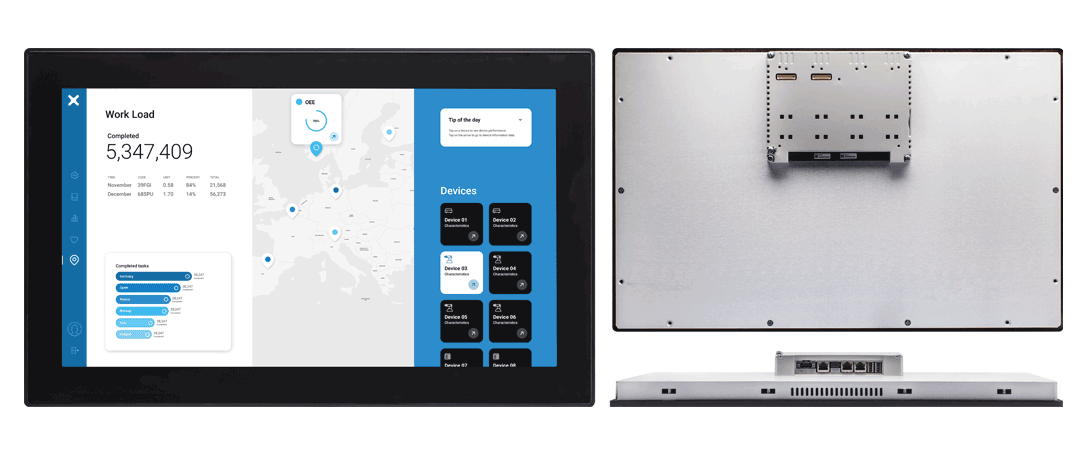

EXOR eX721
Key Features
- 21.5" TFT color display
- 1920 x 1080 pixel (Full HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 32-bit quad-core CPU, 800 MHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser
Software Configurations
The eX700 series is available with JMobile runtime or Chromium HTML5 web browser. Optional activation licenses can be added, enabling advanced functionalities: I/O control, database connection, remote connectivity via VPN, IoT data acquisition and processing in the cloud.
Hardware
Software
Config.
eX705
eX707
eX710
eX712
eX715
eX721
For project development and programming with JMobile Studio
-
CODESYS runtime
Optional license to activate the CODESYS V3 internal runtime, transforming the HMI into a PLC as well
-
Native DB Connector
Optional license to link a database to a JMobile project
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
eX7__
For use as a web client
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
eX7__ Web*
*As web browser requires extensive CPU resources, we recommend using the eX700M series instead.
