eX700M Series HMIs
Powerful High-Performance touchscreen panels
The eX700M series enhances the eX700 line with a powerful 64-bit quad-core CPU that ensures JMobile applications are running in their optimal environment for the highest performance. It confirms the unique selling points and benefits of the eX700 series: multitouch display and robust glass front, 3 Ethernet ports and expandability with plug-in modules, full range of certifications for extreme working environments, maritime and industrial, ready for installation of CODESYS PLC runtime software with a full selection of network stacks for I/O.
The eX700M series is available with a 7- to 21-inch display.

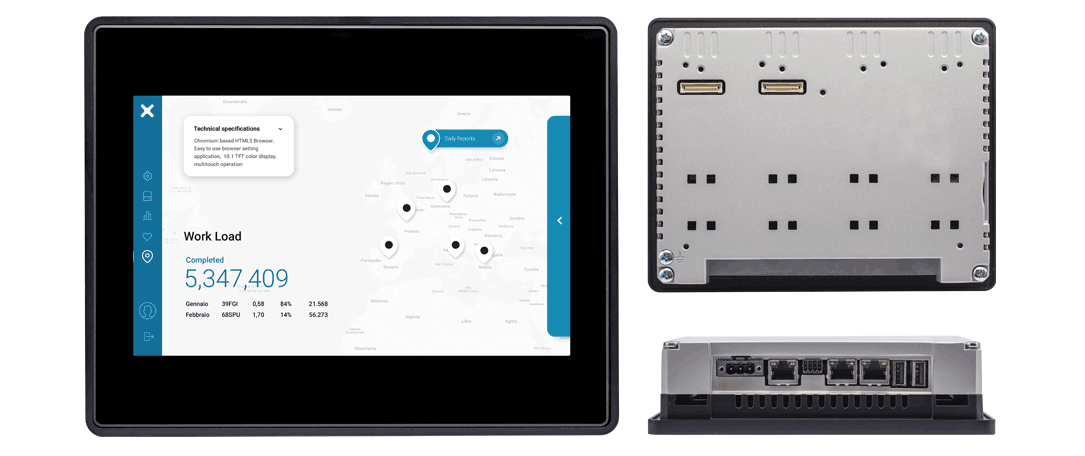

EXOR eX707M
Key Features
- 7" TFT color display
- 800 x 480 pixel resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

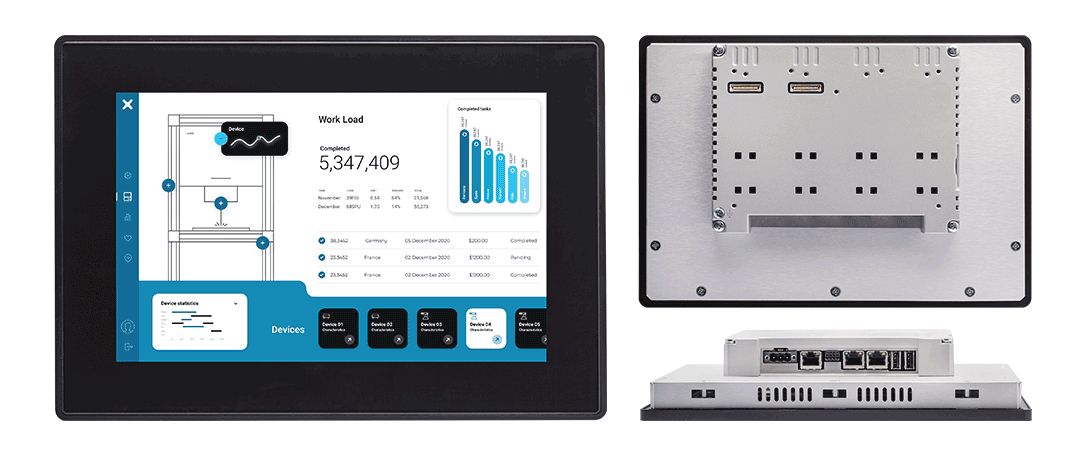

EXOR eX710M
Key Features
- 10.1" TFT color display
- 1280 x 800 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

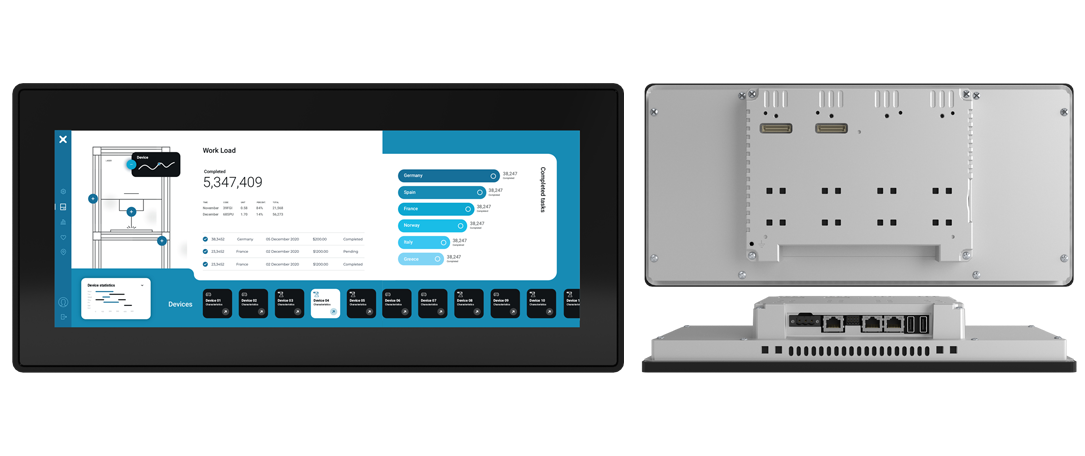

EXOR eX712M
Key Features
- 12.3" TFT (ultra-wide) color display
- 1920 x 720 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

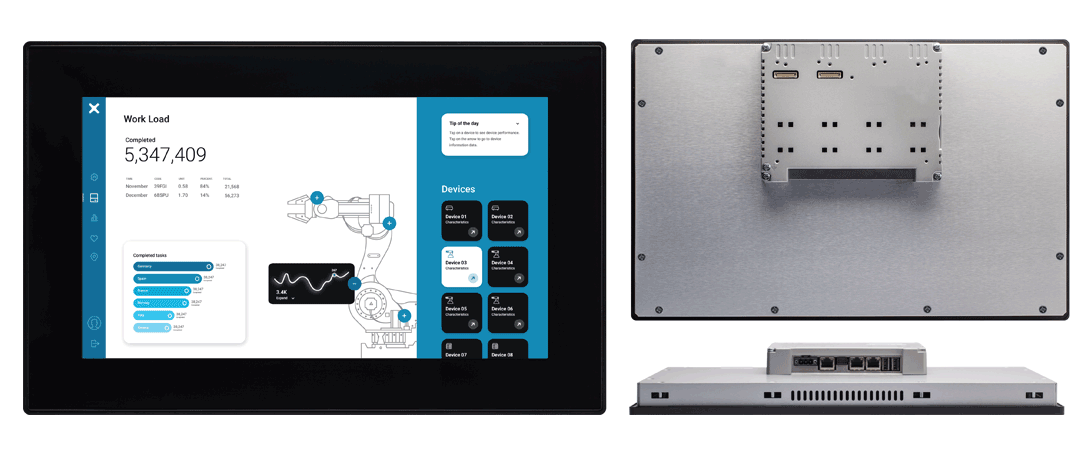

EXOR eX715M
Key Features
- 15.6" TFT color display
- 1366 x 768 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser

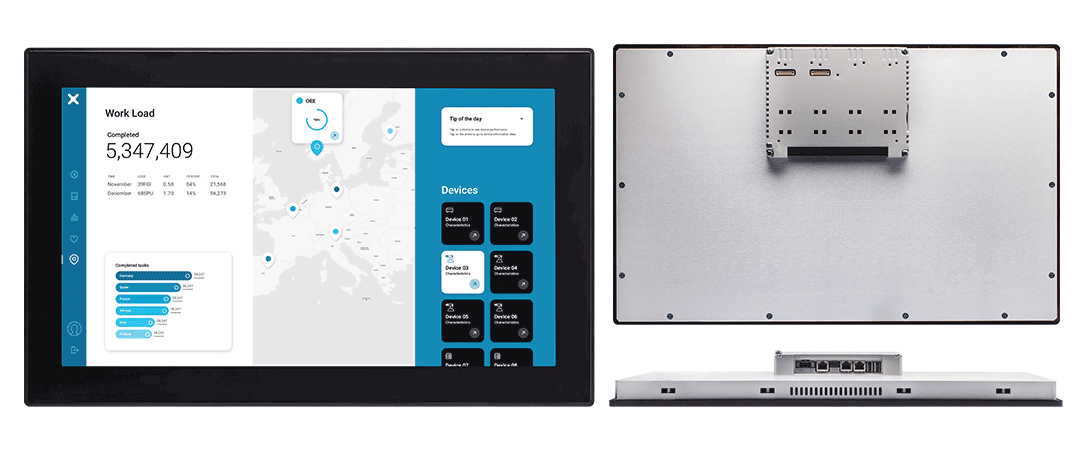

EXOR eX721M
Key Features
- 21.5" TFT color display
- 1920 x 1080 pixel (Full HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming, or web browser
Software Configurations
The eX700M series is available with JMobile runtime or Chromium HTML5 web browser. Optional activation licenses can be added, enabling advanced functionalities: I/O control, database connection, remote connectivity via VPN, IoT data acquisition and processing in the cloud.
Hardware
Software
Config.
eX707M
eX710M
eX712M
eX715M
eX721M
For project development and programming with JMobile Studio
-
CODESYS runtime
Optional license to activate the CODESYS V3 internal runtime, transforming the HMI into a PLC as well
-
Native DB Connector
Optional license to link a database to a JMobile project
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
eX7__M
For use as a web client
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
eX7__M Web
