Outdoor Series
Sunlight-Readable touch panels
The Outdoor HMIs are engineered to deliver outstanding performance in the harshest environments. With high-brightness backlighting and optical bonding, these HMIs ensure clear readability even under direct sunlight. Designed to withstand extreme conditions, they offer an extended temperature range, making them the perfect choice for applications in harsh sectors, such as marine and process industries.
The Outdoor series is available with a 5- to 15-inch display.

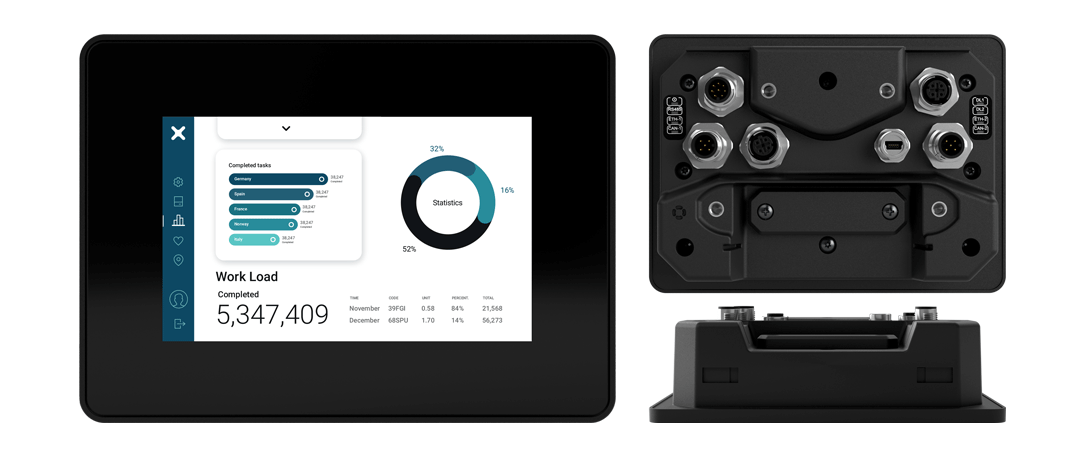

EXOR XA5
Key Features
- 5" TFT color display
- 800 x 480 pixel resolution, 64K colors
- Multitouch capacitive glass screen
- Sunlight-readable with optical bonding
- Fully IP66/IP67 plastic housing
- 32-bit dual-core CPU, 650 MHz
- 8 GB Flash, 1 GB RAM, 64 KB FRAM
- 2x Ethernet ports (10/100 Mbps)
- 1x USB port
- 1x RS-485 serial port
- 2x CAN ports
- 1x slot for expansion module
- Built-in sensors: temperature, 3-axis accelerometer, ...
- Wi-Fi connection
- JMobile Studio programming

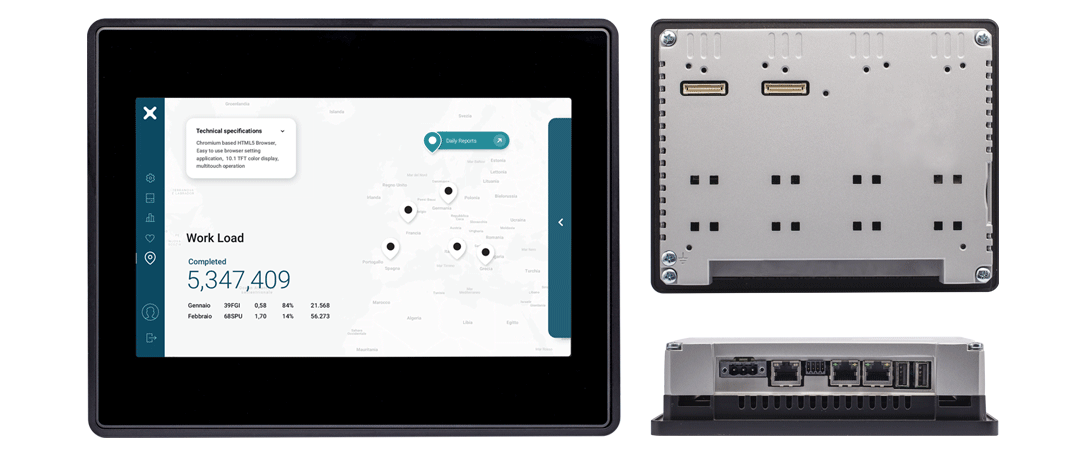

EXOR eX707G
Key Features
- 7" TFT color display
- 800 x 480 pixel resolution, 16M colors
- Multitouch capacitive glass screen
- Sunlight-readable with optical bonding
- Brilliant display (600 Cd/m²)
- Metal housing
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming

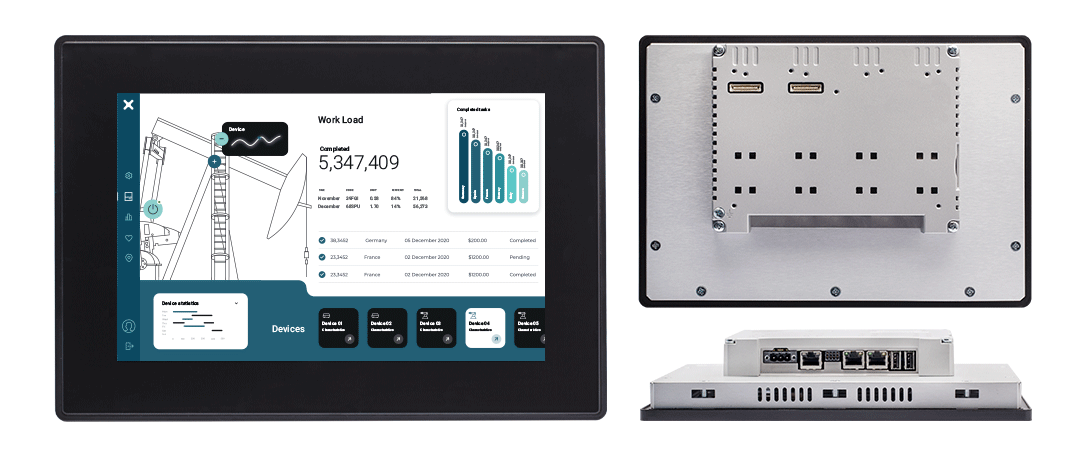

EXOR eX710G
Key Features
- 10.1" TFT color display
- 1280 x 800 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Sunlight-readable with optical bonding
- Brilliant display (800 Cd/m²)
- Metal housing
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming

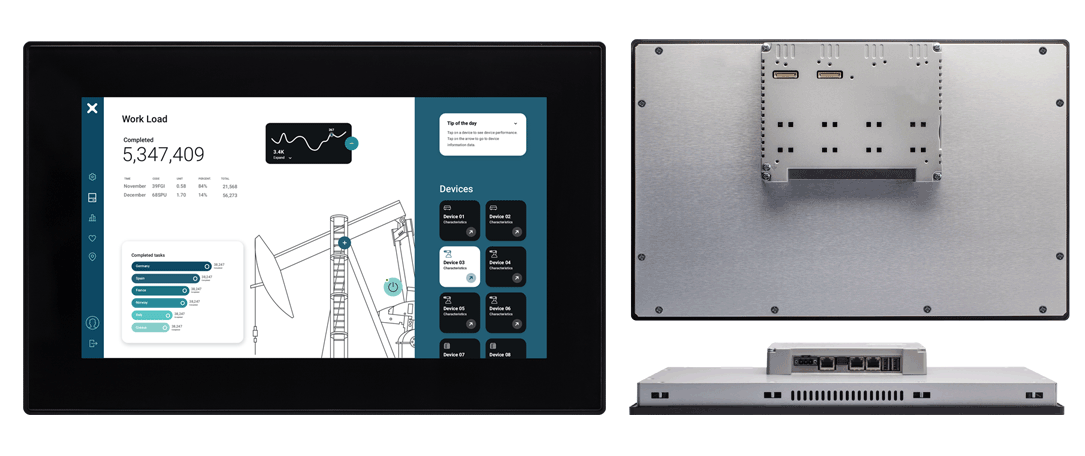

EXOR eX715MG
Key Features
- 15.6" TFT color display
- 1920 x 1080 pixel (Full HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Sunlight-readable with optical bonding
- Brilliant display (700 Cd/m²)
- Metal housing
- 64-bit quad-core CPU, 1.6 GHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
- 2x USB ports
- 1x RS-232/422/485 serial port
- 2x slots for expansion module
- JMobile Studio programming
Software Configurations
The Outdoor series is available with JMobile runtime or Chromium HTML5 web browser. Optional activation licenses can be added, enabling advanced functionalities: I/O control, database connection, remote connectivity via VPN, IoT data acquisition and processing in the cloud.
Hardware
Software
Config.
XA5
eX707G
eX710G
eX715MG
For project development and programming with JMobile Studio
-
CODESYS runtime
Optional license to activate the CODESYS V3 internal runtime, transforming the HMI into a PLC as well
-
Native DB Connector
Optional license to link a database to a JMobile project
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
XA5
eX7__G
For use as a web client
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
