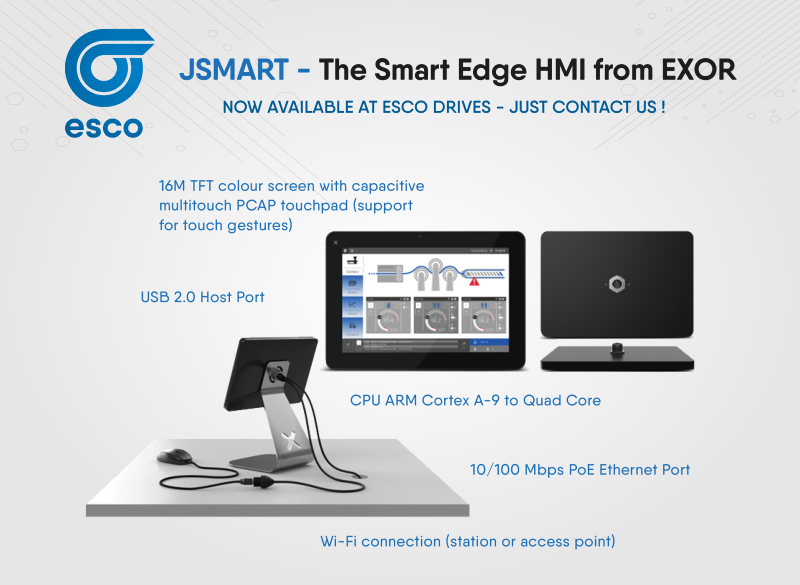

JSmart - The Smart Edge HMI from EXOR

Your Challenges – Our Solution

Smart" means "smart" and, without doubt, the functions offered by this HMI programmed with JMobile, allow it to be classified at a fairly high IQ level ...

As for "Edge HMI" it stands for "as close to the machine as possible" ...

Just imagine: a fully waterproof IP67 housing on both front and back, a unique Ethernet PoE (Power over Ethernet) connection that also guarantees a high degree of waterproofing, custom mounting accessories...

Everything to get rid of a cabinet and mount the HMI directly on the machine!

This is what this new range has to offer you: isn't it really a new concept?

Even applicable for different modes of mounting:

Pipe mounting

Mounting flanges suitable for mounting on tube diam. 48mm.

Flange mounting

Specially adapted for mounting on a wall, a support arm, ...

Desk mount

To be used in combination with the cable enabling both PoE Ethernet connection and USB.


Various cables (length 5m) are available to meet your needs. They guarantee IP67 watertightness. If you do not have a PoE compatible switch, the PoE injector from EXOR is available.


Some of the features of the Exor JSmart:

  • 16M TFT colour screen with capacitive multitouch PCAP touchpad (support for touch gestures)
  • CPU ARM Cortex A-9 to Quad Core
  • 10/100 Mbps PoE Ethernet Port
  • USB 2.0 Host Port
  • Wi-Fi connection (station or access point)
  • Includes environmental (temperature, pressure) and vibration sensors
  • IP67 degree of protection
  • JMobile Programming Software
  • Supports multiple communication protocols
  • Industry 4.0" functions (OPC UA Server/Client, MQTT, FTP, WebAccess,...)
  • FTP(S) – S=secure/encrypted available
  • From size 5" with WVGA resolution (800x480) to size 21.5" full HD resolution (1920x1080)


If you have any questions or would like more information in the meantime, please feel free to contact us:
