Touch panels for Food, Beverage and Pharmaceutical industries

In industries like Food, Beverage and Pharmaceutical, the production environment demands equipment that is not only reliable, but also complies with stringent hygiene standards. The Food & Pharma series is designed precisely to meet these challenges. Built with stainless steel, it is inherently resistant to the corrosive effects of frequent cleaning agents. The IP69 rating ensures it can withstand high-pressure jet washing, a common cleaning method in these sectors. In addition, it features a silicone food compliant gasket and a glass screen reinforced with a polyester coating.

The Food & Pharma series is available with a 7, 10 or 15-inch display.

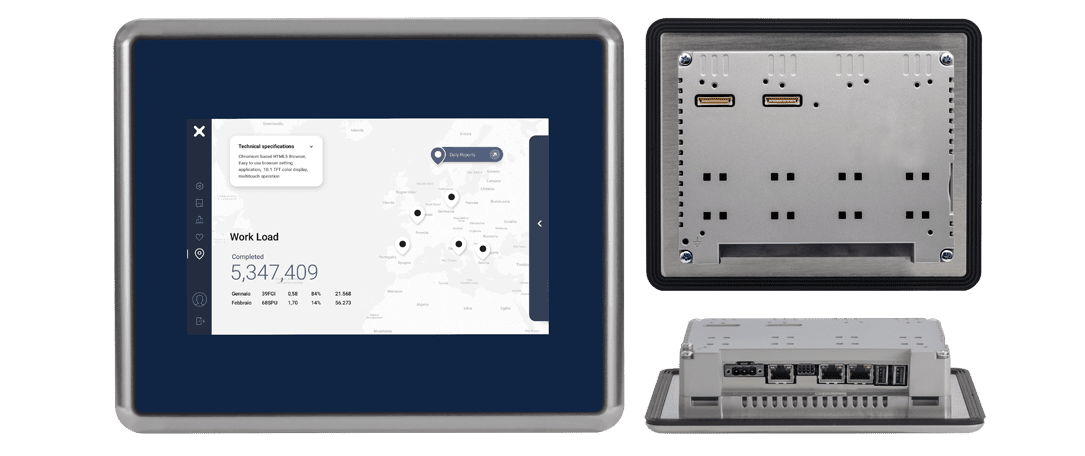

EXOR eX707FB

Key Features

• 7" TFT color display
• 800 x 480 pixel resolution, 16M colors
• Multitouch capacitive glass screen, with polyester coating
• Hygienic stainless steel design, with food compliant gasket
• IP69 protection class
• 32-bit dual-core CPU, 800 MHz
• 4 GB Flash, 1 GB RAM, 64 KB FRAM
• 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
• 2x USB ports
• 1x RS-232/422/485 serial port
• 2x slots for expansion module
• JMobile Studio programming

>> Request a quote

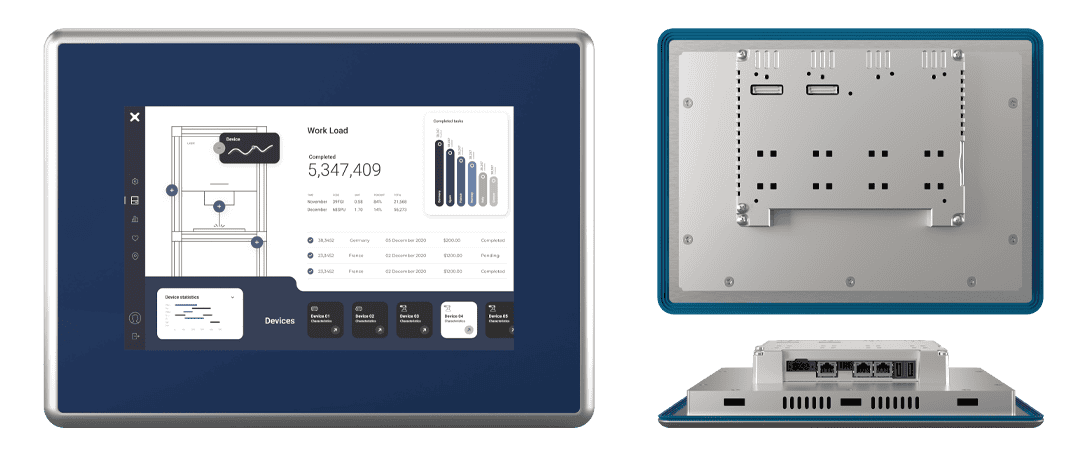

EXOR eX710MFB

Key Features

• 10.1" TFT color display
• 1280 x 800 pixel (HD) resolution, 16M colors
• Multitouch capacitive glass screen, with polyester coating
• Hygienic stainless steel design, with food compliant gasket
• IP69 protection class
• 64-bit quad-core CPU, 1.6 GHz
• 8 GB Flash, 2 GB RAM, 64 KB FRAM
• 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
• 2x USB ports
• 1x RS-232/422/485 serial port
• 2x slots for expansion module
• JMobile Studio programming

>> Request a quote

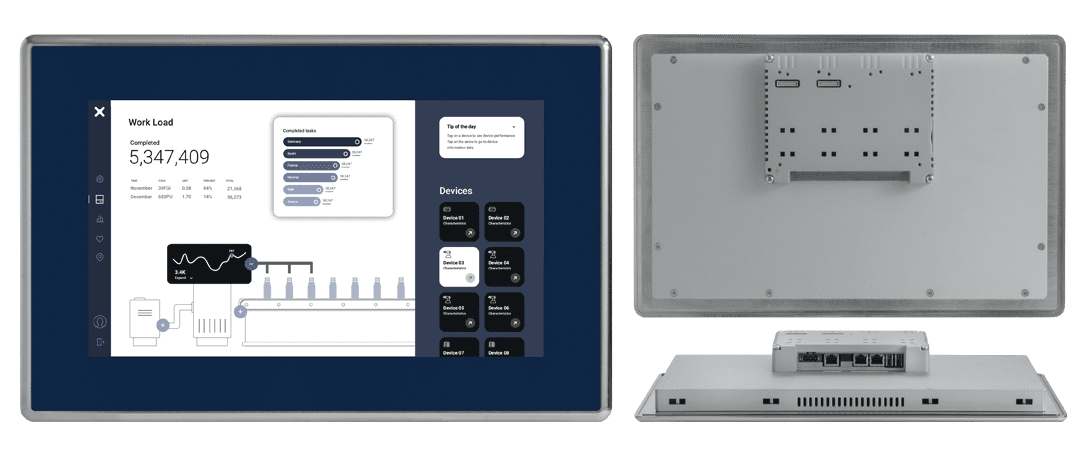

EXOR eX715FB

Key Features

• 15.6" TFT color display
• 1366 x 768 pixel (HD) resolution, 16M colors
• Multitouch capacitive glass screen, with polyester coating
• Hygienic stainless steel design, with food compliant gasket
• IP69 protection class
• 32-bit quad-core CPU, 800 MHz
• 8 GB Flash, 2 GB RAM, 64 KB FRAM
• 3x Ethernet ports (1x 10/100/1000 Mbps, 2x 10/100 Mbps)
• 2x USB ports
• 1x RS-232/422/485 serial port
• 2x slots for expansion module
• JMobile Studio programming

>> Request a quote

Explore all HMIs

Discover expansion modules

Software Configurations

The Food & Pharma series is available with JMobile runtime or Chromium HTML5 web browser. Optional activation licenses can be added, enabling advanced functionalities: I/O control, database connection, remote connectivity via VPN, IoT data acquisition and processing in the cloud.
