JSmart700 Series HMIs
Fully Enclosed IP67 touch panels
The JSmart700 series is designed to be placed wherever it fits best into the installation. It doesn't require any additional enclosure or installation in a cabinet. Key features include: leek and elegant design, ability to connect the device via a single Power-over-Ethernet (PoE) cable, full set of motion and environment sensors, Wi-Fi interface, multitouch display and robust glass front, ready for installation with support arm, IP67 all-around.
The JSmart700 series is available with a 5- to 21-inch display.
Note: With its powerful 64-bit quad-core CPU, the JSmart700M series is an enhancement of the JSmart700 series.

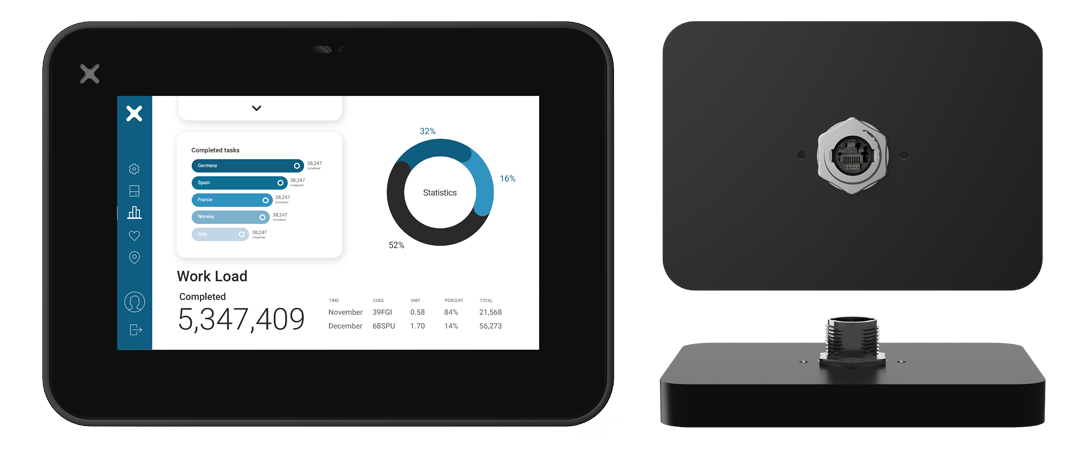

EXOR JSmart705
Key Features
- 5" TFT color display
- 800 x 480 pixel resolution, 16M colors
- Multitouch capacitive glass screen
- Full IP67 protection
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 1x Power-over-Ethernet (PoE) port (10/100 Mbps)
- Built-in sensors: temperature, 3-axis accelerometer, ...
- JMobile Studio programming, or web browser

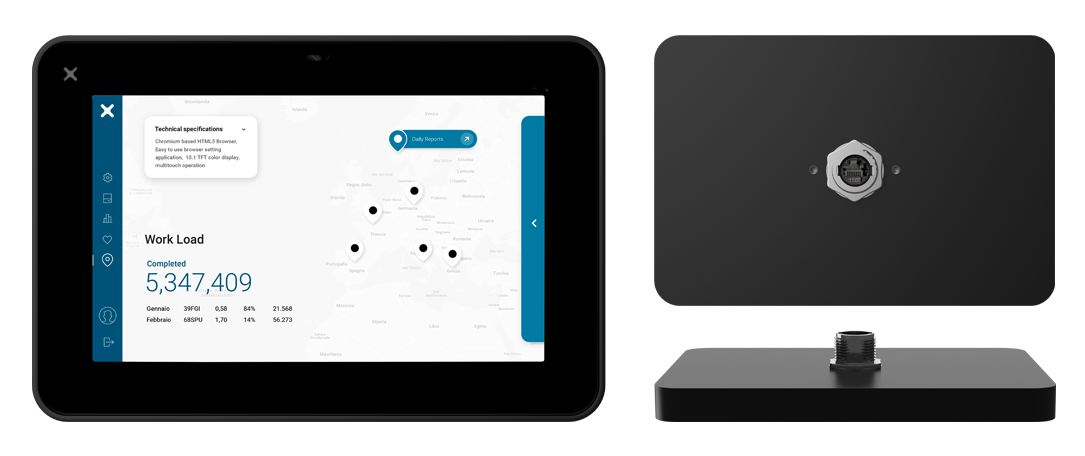

EXOR JSmart707
Key Features
- 7" TFT color display
- 1024 x 600 pixel resolution, 16M colors
- Multitouch capacitive glass screen
- Full IP67 protection
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 1x Power-over-Ethernet (PoE) port (10/100 Mbps)
- Built-in sensors: temperature, 3-axis accelerometer, ...
- Wi-Fi connection, as station or access point
- JMobile Studio programming, or web browser

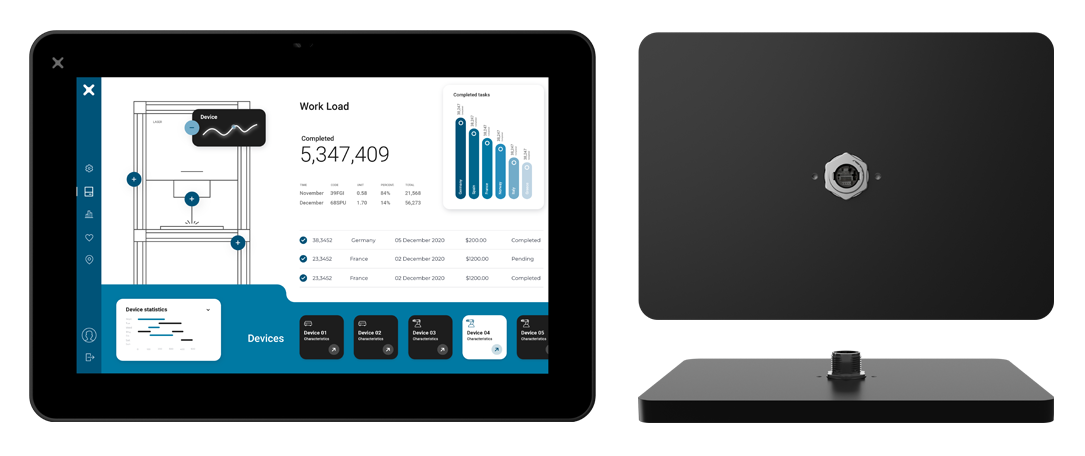

EXOR JSmart710
Key Features
- 10.1" TFT color display
- 1280 x 800 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Full IP67 protection
- 32-bit dual-core CPU, 800 MHz
- 4 GB Flash, 1 GB RAM, 64 KB FRAM
- 1x Power-over-Ethernet (PoE) port (10/100 Mbps)
- Built-in sensors: temperature, 3-axis accelerometer, ...
- Wi-Fi connection, as station or access point
- JMobile Studio programming, or web browser

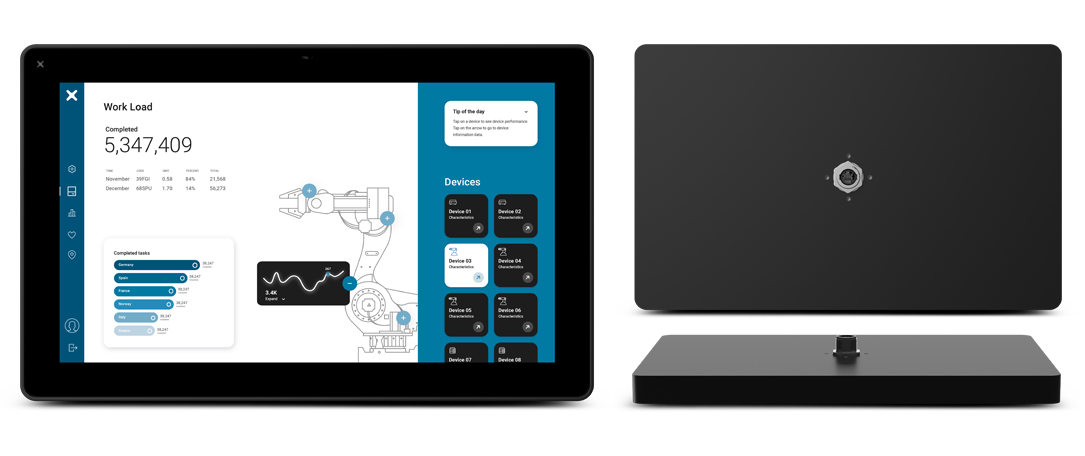

EXOR JSmart715
Key Features
- 15.6" TFT color display
- 1366 x 768 pixel (HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Full IP67 protection
- 32-bit quad-core CPU, 800 MHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 1x Power-over-Ethernet (PoE) port (10/100 Mbps)
- Built-in sensors: temperature, 3-axis accelerometer, ...
- Wi-Fi connection, as station or access point
- JMobile Studio programming, or web browser

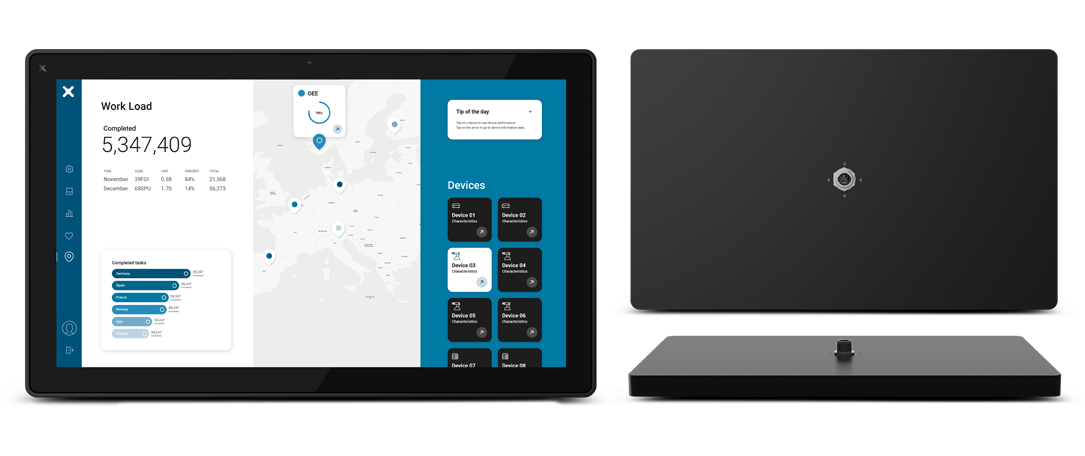

EXOR JSmart721
Key Features
- 21.5" TFT color display
- 1920 x 1080 pixel (Full HD) resolution, 16M colors
- Multitouch capacitive glass screen
- Full IP67 protection
- 32-bit quad-core CPU, 800 MHz
- 8 GB Flash, 2 GB RAM, 64 KB FRAM
- 1x Power-over-Ethernet (PoE) port (10/100 Mbps)
- Built-in sensors: temperature, 3-axis accelerometer, ...
- Wi-Fi connection, as station or access point
- JMobile Studio programming, or web browser
Software Configurations
The JSmart700 series is available with JMobile runtime or Chromium HTML5 web browser. Optional activation licenses can be added, enabling advanced functionalities: I/O control, database connection, remote connectivity via VPN, IoT data acquisition and processing in the cloud.
Hardware
Software
Config.
JSmart705
JSmart707
JSmart710
JSmart715
JSmart721
For project development and programming with JMobile Studio
-
CODESYS runtime
Optional license to activate the CODESYS V3 internal runtime, transforming the HMI into a PLC as well
-
Native DB Connector
Optional license to link a database to a JMobile project
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
JSmart7__
For use as a web client
-
CORVINA Platform
Optional license to activate CORVINA service, enabling remote connectivity (VPN) and IoT data collection and analysis
JSmart7__ Web*
*As web browser requires extensive CPU resources, we recommend using the JSmart700M series instead.
